SANICUBIC 2 SC
Free passage 80 mm or 100 mm
• 1 000 litre tank.
• Two three-phase pumps.

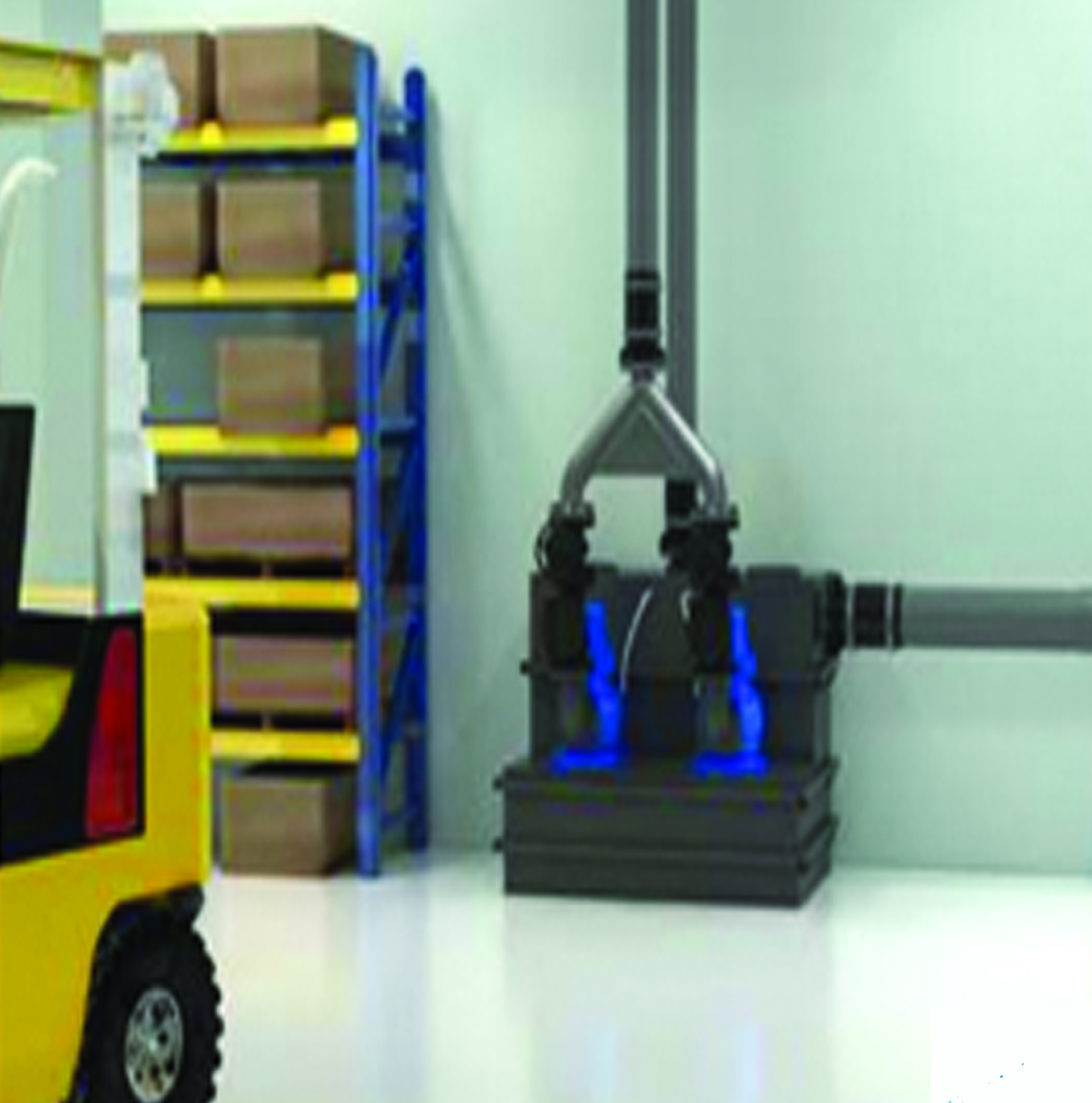

• 1 inlet DN150 for lifting large volumes of waste water from public buildings or blocks of flats.
Optional mounting accessories available
• Control box included (ZPS or PS2).
• Tank customisation on request (tank volume up to 20 000 L and number of inlets).
• Start star-delta for the Sanicubic 2 SC7 version. 5T
| TMH max. | 22 m |
|---|---|
| Max. flow rate | 165 m3/h |
2 SC3.0 T |
2 SC4.0 T |
2 SC5.5 T |
2 SC7.5 T |
|
|---|---|---|---|---|
| Type of control box | ZPS 2 case | ZPS 2 case | ZPS 2 case | PS2 System case |
| MATERIALS | ||||
| Tank | PE HD | PE HD | PE HD | PE HD |
| Pump housing | GG-20 | GG-20 | GG-20 | GG-20 |
| Motor housing | GG-20 | GG-20 | GG-20 | GG-20 |
| Impeller | GG-20 | GG-20 | GG-20 | GG-20 |
| ELECTRICALS FEATURES | ||||
| Voltage (V) | 400 | 400 | 400 | 400 |
| Frequency (Hz) | 50-60 | 50-60 | 50-60 | 50-60 |
| Power consumption P1 (P=power) (W) | 4000 | 5500 | 6300 | 8700 |
| Power output P2 (P=power) (W) | 3000 | 4000 | 5500 | 7500 |
| Mode of operation | S3 25% | S3 25% | S3 25% | S3 25% |
| IP Rating | IP68 | IP68 | IP68 | IP68 |

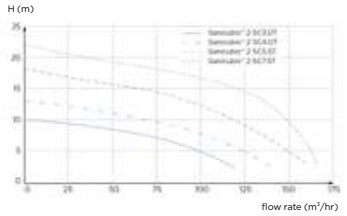

| HYDRAULICS | ||||
| Total manometric head (m) | 10 | 13 | 18 | 22 |
| Max. flow rate (m3/h) | 120 | 140 | 160 | 165 |

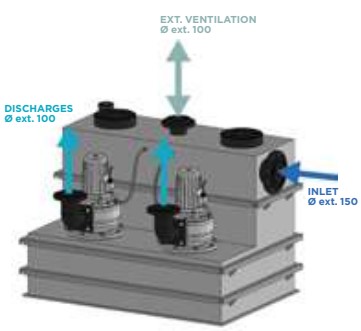

| Inlet diameter DN | 150 | 150 | 150 | 150 |
| Discharge diameter DN | 100 | 100 | 100 | 100 |
| Ext.ventilation diameter (mm) | 100 | 100 | 100 | 100 |
| Total volume (L) | 1000 | 1000 | 1000 | 1000 |
| Useable volume (L) | 500 | 500 | 500 | 500 |
| Passage libre (mm) | 80 | 80 | 100 | 100 |
| Max. temperature of the pumped liquid (5 min) | 55°C | 55°C | 55°C | 55°C |
| Type of wheel | Single-channel | Single-channel | Single-channel | Single-channel |
| Type of activation | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| IDENTIFICATION AND LOGISTICS | ||||
| Gross weight (kg) | 370 | 385 | 400 | 425 |
| EAN code | 3308815079073 | 3308815079080 | 3308815079097 | 3308815079103 |
| Factory code | CUBIC2SC3-0T | CUBIC2SC4-0T | CUBIC2SC5-5T | CUBIC2SC7-5T |
