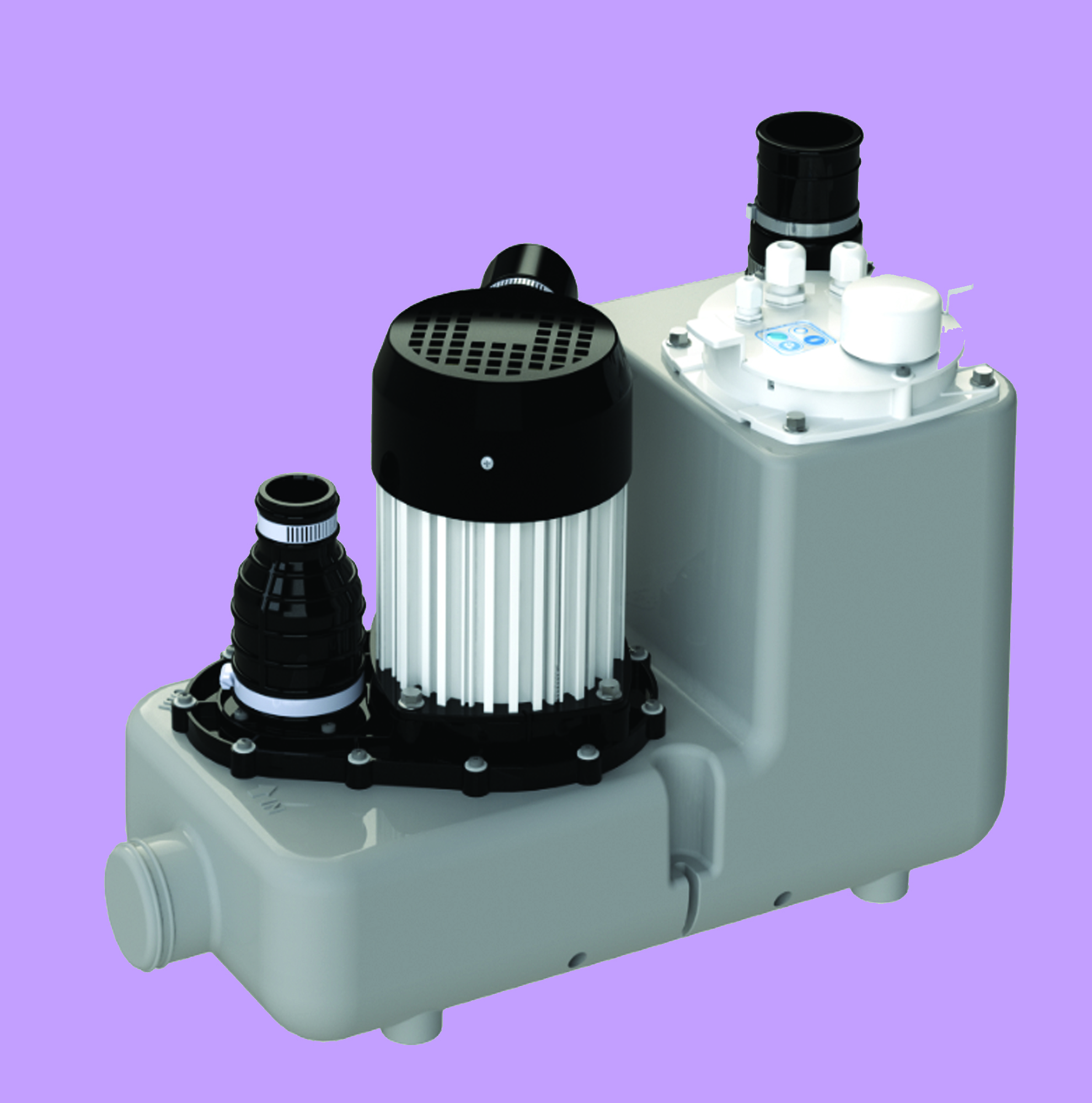

SANICOM 1
Pumping stations for grey water.
• Simple and easy installation without soil disbursement.
• Inlets on each side of the device for greater flexibility (ext. diameter 40).
• Removable motor and level sensors for ease of maintenance.
Compact design.
• Ability to pump grey water (except toilets) up to 90°C.
• Forced motor start possible.
• 1-pump lifting station
• Built-in check valve
| Tank volume | 14 L |
|---|---|
| Ø of inlets | 2x 40 mm |
| Discharge diameter ext. | 32 mm |
| Ventilation diameter | 50 mm |
| ON/OFF level | 135 mm / 50 mm |
| Shower tray height | 25 cm minimum |
| Maximum temperature of incoming wastewater | 90°C intermittently (max. 5 min) |
| Possible connections | Grey water from bathroom (without toilet), kitchen, laundry |
| Wheel type | Multi-channel |
| Solid handling capacity | 8 mm |
| Voltage | 220-240 V/50 Hz |
| Power rating | 750 W |
| Max. absorbed intensity | 3.3 A |
| Weight (including accessories) | 10 kg |
| Protection rating (IP) | IPX4 |
| Electrical class | I |

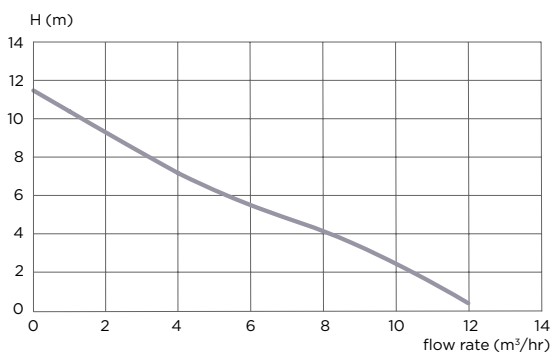

| Max. flow | 12 m3/hr |
|---|---|
| Max. height (Q = 0 m3/hr) | 11 m |
| Max. recommended height | 8 m |
