SANISUB 400
BENEFITS:
• Submersible pump.
• Automatic release.
• Built-in check valve.
• Sucks up to 5 mm without suction strainer.
• Floating ring seal provided.
Emergency pumping

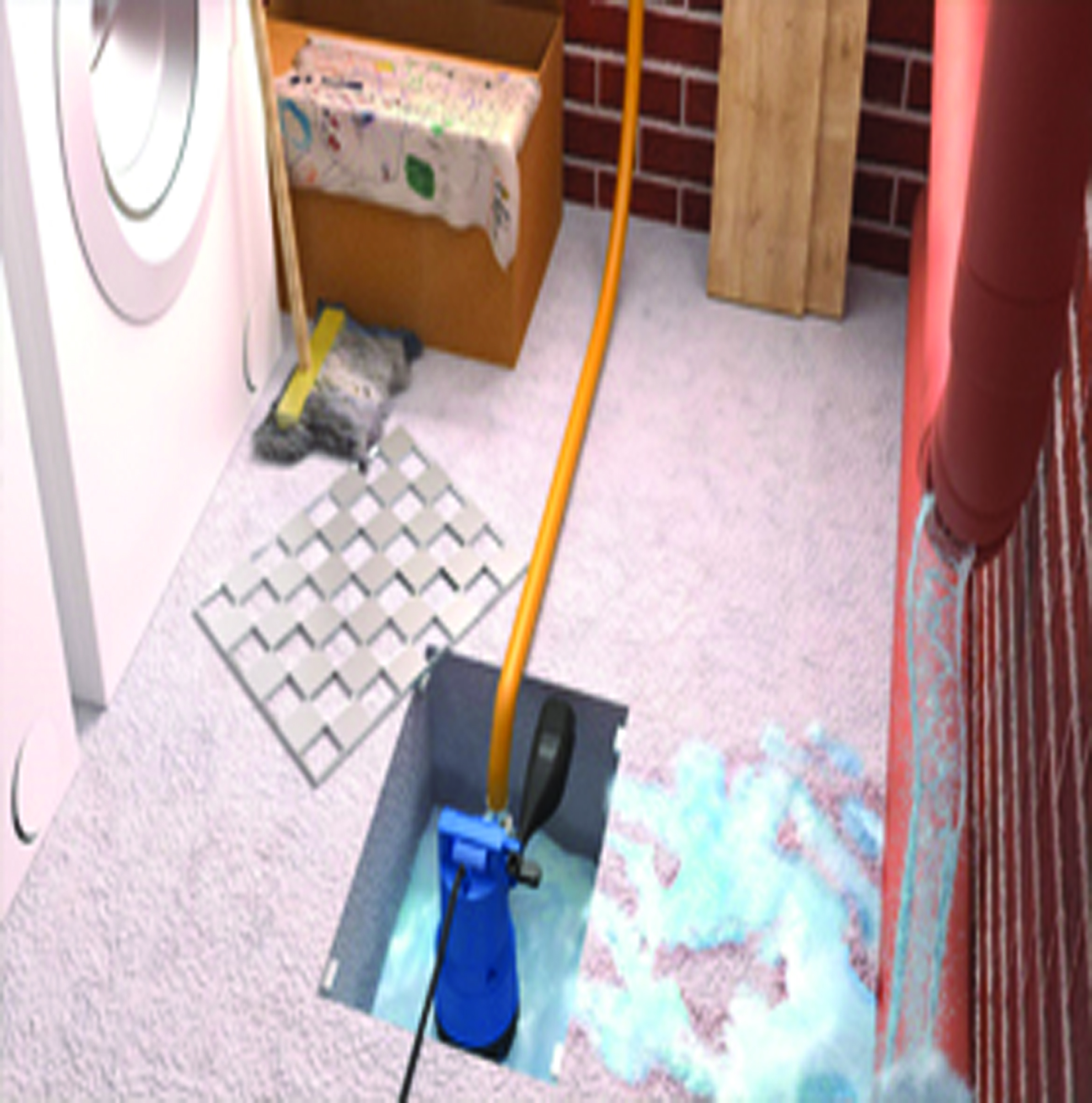

• Drainage of cellars, water pumping from sumps and garages
| Max. height | 7.5 m |
|---|---|
| Max. flow | 7 m3/hr |
• Jacket cooled submersible pump for clear water.
• Made from polypropylene and stainless steel.
• Discharge pipe diameter 1 ¼.
• 7 m immersion depth.
• Solid handling capacity 10 mm.
• T° max. acceptable at 5 minute intervals: 70 °C.
• Multi-channel wheel.
• Check valve
• Connectors
• Activated carbon filter included to neutralise odours
| REFERENCE | U (V) | P1 (W) | P2 (W) | FREQUENCY (HZ) | I MAX (A) | TR / MN | PROTECTION RATING (IP) | Q MAX (M3/HR) | H MAX (M) | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|---|
| Sanisub 400 | 230 | 400 | 180 | 50-60 | 1.4 | 2800 | IP68 | 7 | 7.5 | 4.6 |
