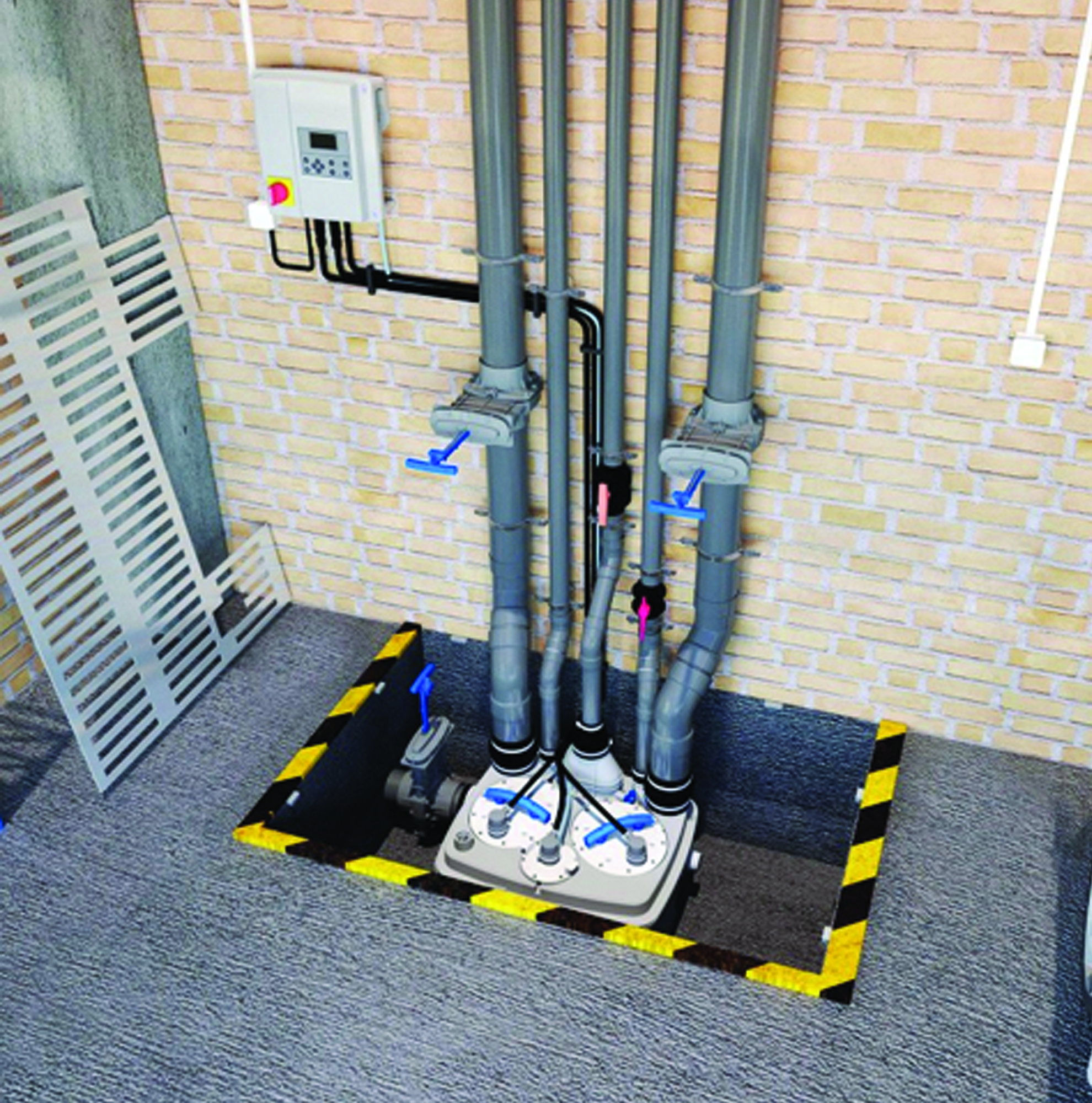

SANICUBIC 2 VX
(Three-Phase)
Available in single-phase and three-phase.
• Direct and safe access to the motors and level sensors
• 2 motors for more intense use.
• Perfect for blocks of flats, professional buildings, restaurant, schools, hotels, shopping centres
• 5 inlets, including 2 low ones, to adapt to all configurations.
• Remote control box and alarm unit supplied as standard for reliable operation.
GATE VALVES
DN100 ball valve for drainage:
• Specifically for the Sanicubic 2 VX and 1 VX
Activated Carbon Filter:
• Neutralises odours.
GATE VALVES AND CARBON FILTER AVAILABLE IN ACCESSORIES

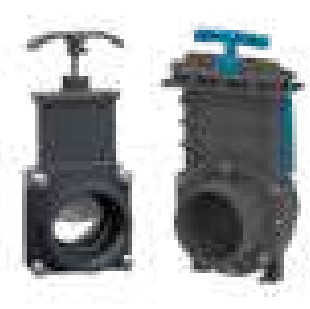

Guillotine valves for inlet pipes
• To comply with the regulations and to facilitate maintenance operations, gate valves must be installed on the effluent inlets as well as on the drainage pipe
| Tank volume | 120 L |
|---|---|
| Ø of ext. inlets | • 1 inlet 40 / 50 mm • 4 inlets 40 / 50 / 100 / 110 mm |
| Discharge diameter ext. | 110 mm |
| Ventilation diameter | 75 mm |
| Maximum temperature of incoming wastewate | 70°C intermittently (max. 5 min) |

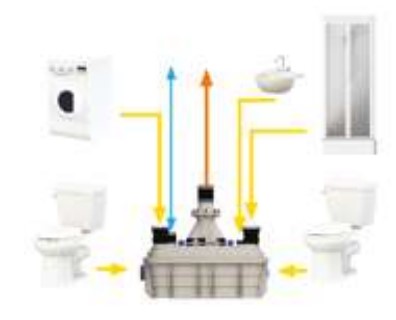

| Possible connections | Black water from several toilets, grey water from bathroom, kitchen, laundry |
| Wheel type | Vortex (50 mm clearance) |
| Voltage | Sanicubic 2 VX single-phase: 220-240 V / 50 Hz three-phase: 230-400V / 50Hz |
| Power rating | Sanicubic 2 VX single-phase: 2 x 2,000 W three-phase: 2 x 3,500 W |
| Max. absorbed intensity | Sanicubic 2 VX single-phase: 16 A three-phase: 12 A |
| ON/OFF level | 165 / 95 mm |
| Alarm level | 235 mm |
| Weight (including accessories) | Sanicubic 2 VX single-phase: 101 kg three-phase: 102 kg |
| Protection rating (IP) | IP68 |
| Control unit protection rating (IP) | IPX4 |
| Electrical class | I |

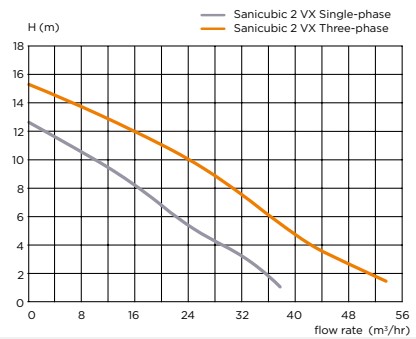

| Max. flow | Sanicubic 2 VX single-phase: 40 m3/hr three-phase: 55 m3/hr |
|---|---|
| Max. height (Q = 0 m3/hr) | Sanicubic 2 VX single-phase: 13 m three-phase: 16 m |
| Max. recommended height | Sanicubic 2 VX single-phase: 6 m (DN 100) and 10 m (DN 80) three-phase: 11 m (DN 100) 14 m (DN 80) |
• 2 motor pumping station
• 2 built-in check valves
• Remote control unit
• Remote alarm unit
• BMS Connector: dry switch for alarm
