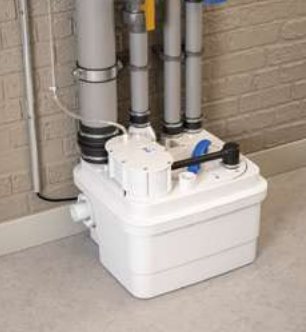

Sanicubic 1
Pro X K2 grinding technology.
• Drains wastewater through a 50 mm ext. diameter hose.
• Removable motor and level sensors for ease of maintenance.
• IP68 reinforced seals and remote control (WP version).
Compact design.

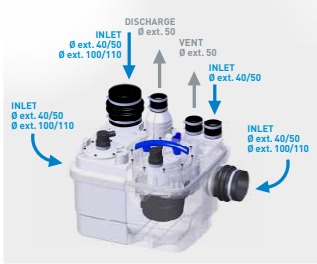

• 4 inlets, including 2 low ones, for greater installation flexibility.
• Discreet installation (drainage Ø ext 50 mm).
• Secure operation with the audio and visual alarm box.
GATE VALVES
Guillotine valves for inlet pipes
• To comply with the regulations and to facilitate maintenance operations, gate valves must be installed on the effluent inlets as well as on the drainage pipe
ACTIVATED CARBON FILTER
• Neutralises odours.
• 1 motor lifting station
• Built-in check valve
• Alarm unit
• Remote control unit (WP version)
| Tank volume | 32 L |
|---|---|
| Ø of ext. inlets | • 1 inlet 40/50 mm • 3 inlets 40, 50, 100, 110 mm |
| Discharge diameter ext. | 50 mm |
| Ventilation diameter | 50 mm |
| Maximum temperature of incoming wastewate | 70°C intermittently (max. 5 min) |

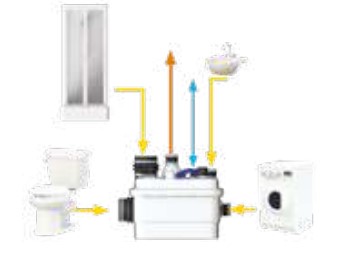

| Possible connections | Black water from several toilets, grey water from bathroom, kitchen, laundry |
| Wheel type | Grinder |
| Voltage | 220-240 V/50 Hz |
| Power rating | 1 x 500 W |
| Max. absorbed intensity | 6 A |
| ON/OFF level | 140/70 mm |
| Alarm level | 210 mm |
| Weight (including accessories) | Sanicubic 1: 19.8 kg Sanicubic 1 WP: 23 kg |
| Protection rating (IP) | Sanicubic1: IP67 Sanicubic 1 WP: IP68 |
| Control unit protection rating (IP) | IPX4 |
| Electrical class | I |

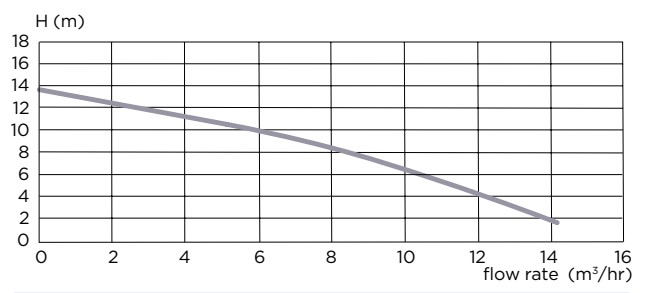

| Max. flow | 15 m3/hr |
|---|---|
| Max. height (Q = 0 m3/hr) | 13 m |
| Max. recommended height | 11 m |
